Saturday, June 27, 2015

Improved 6502 Virtual Trainer

Over the last few days I have made a lot of progress on this project. The main hurdle was getting a USB Virtual Com Port example running with the toolchain. The code from the first 6502 Virtual Trainer, which used an MSP430, was pretty easy to port to the STM32. After I got single-stepping to work, as I mentioned in my last post, I worked on the mode that stores the entire address space on the chip. It was a little surprising at first that it only ran at about 23,000hz. This is not much faster than the 14,000hz I was running at with the MSP430 version. My initial suspicion was that the transfers between the chip and PC to keep their respective copies of the address space synced were taking too much time. Timing the transfers showed that the chip usually spent over 90% of its time executing code, however. The biggest speed up came by manipulating the GPIO registers directly, rather than relying on the cumbersome HAL functions. Another thing I tried was changing the baud rate, although I couldn't find where it was initialized in the code. Eventually I found out that the Virtual Com Port doesn't rely on any sort of baud rate setting. A few other small improvements got the speed up to 350,000hz or so. When I found out how to turn on GCC optimizations in the System Workbench IDE, the speed got up to over 770,000hz. That's 0.77MHz! It's not quite the 1MHz I had hoped for but it is over 50 times faster than the first version.
My original plan was to leave the IDE unchanged so that it would be compatible with both the old
MSP430 board and the new STM32 version, but I had to change a few things. For one, I was only transferring two bytes of data to count how many clock cycles had been executed since the last update, so I had to add a third one since the new board runs so much faster. The old version synced with the IDE when at least 64 bytes of data needed to be transferred. This is the most I could store in the MSP430's internal RAM. The new limit is 200, which wastes less time syncing when lots of data is transferred. A few thousand bytes would probably be even better, but the IDE wasn't able to keep up. This could probably be fixed but 200 is fine for now.
Another thing that changed was losing support for breaking on uninitialized reads. This was a very handy feature on the first version because it could catch many different kinds of errors. That version used a 65C816 in 6502 mode and separating read cycles from internal operation cycles (when the processor is not reading despite the RWB pin being high) was easy monitoring the VPA and VDA pins. There is no easy way to do this on the 65C02 I am using now without storing information on the microcontroller about the status of the bus for every cycle of every opcode in every addressing mode. Hopefully I can live without this feature now that I have a little more experience with 6502 assembly. To test the new version I used the same small RPN graphing calculator program I wrote for the first version. It works great but drawing to the screen, even with the GDI library, is still a bit of a bottleneck.
Now that I am finished with this project I can start on programming the calculator I hope to build for the Makevention in August.

Thursday, June 25, 2015

Summer Hackathon: Update

During the past few weeks I have had a lot of time to work on the projects I planned for my Summer Hackathon. So far I haven't made as much progress as I hoped, mostly because two of them took a lot more time to get going than I expected. Here is my what I have done so far on the ones I have worked on.

EEPROM Computer
Basing a computer architecture on precomputed lookup tables seemed like a an interesting idea when I started working on an assembler program for a 4-bit EEPROM-based computer. On IRC I explained what I was intending and the creator of the CADET computer showed me what he had accomplished. It is more or less the same thing I wanted to build, so I decided to stop work on this project for the time being. After discussing the idea with a friend at our hackerspace, I decided that it would only be worth continuing this project if I expanded it to a 16 or 32-bit architecture.

Brainfuck Microcontroller

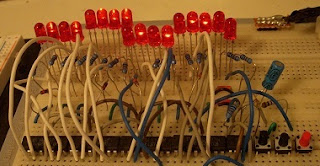

For this project I have only hooked up four 74ALS193 counters since the last update. These will be the address counters for the program memory. My plan is to build the computer in small parts on a breadboard and transfer them to protoboard when I finish each piece. Rather than lay everything out on a a large board, I started soldering 8x12cm boards that will stack with double row headers. This way I will have plenty of pins to transfer signals between boards. I also plan to put LEDs on the topmost board to show signals like the address, jump buffer, op code, data pointer, and control signals.

ESP8266
A guy at our hackerspace was having trouble getting his ESP8266 going, so I set mine up to figure
out how to do it. Luckily for me, mine worked fairly well on the first try. The 03 variant I bought last year looked especially good since it is a little smaller than the others I looked at, and has several GPIOs, which I will need for one of the projects I have planned. One inconvenient thing is the 2mm pitch of the pins, which is slightly smaller than the 2.54mm, or 0.1'', pitch of a breadboard, but I soldered a small adapter. The firmware behavior is a little different than what some of the tutorials say to expect, but I was able to get a list of wireless networks at my house and connect to the WiFi at our hackerspace.
The LED of my friend's ESP8266 only lit dimly on my breadboard, as the voltage dropped down as low as 2.3v when run through the 3.3v LM1117 regulator I was running my repurposed 5v supply through. We haven't been able to figure out why this happens yet. For my chip the voltage also sank to about 3v, but it was still enough to keep the chip working. The supply itself seems to be good, as it delivers 5.18v, so I think the problem is with the regulator. When I tested the supply without the regulator on a breadboard with the 74ALS193 counters for the Brainfuck microcontroller, one side of the breadboard was down to 4.8v while the supply was still at 5.18v. Moving the jumper wires on the power rails around brought everything back to 5.18v

Wireless Breadboard
This project was especially exciting to me because it can be used to debug several of the other projects. To begin with I cut one of my 8x12cm protoboards in half and soldered single-row female headers to them, so a breadboard with male headers soldered on could be plugged into it. Unfortunately, I miscalculated the width of the breadboard and soldered the female headers on too wide apart. My local shop has been out of headers lately, so I tried to desolder the headers and broke a row of them in half in the process. So far I would consider this project a failure.

ATF1508 CPLD
This is an essential part of the 6502-based calculator I am hoping to build soon. Unfortunately, it has been my main source of headaches over the past few weeks. First of all, I tried to program the chip with an MSP430 generating JTAG signals from an svf file but this failed. After some searching, I found out that the JTAG standard is not really "standard" at all, and chips from different manufacturers handle the standard differently. Next, I tried generating a pcf file from the svf file, because it contains the actual states of every pin on every clock cycle. Although this worked and I could program the chip, the programming steps were ridiculously complicated. After using Atmel's WinCUPL program (which itself is rather unpleasant to use) to generate a JEDEC file, I convert it to an svf file with the Atmel ISP program. The problem with this is that the program offers a couple of nonsense error messages and just crashes if the FTDI cable I use to communicate with the MSP430 is still plugged in when I start the program or click the button to generate the svf file. Next, I have to switch to a virtual machine to generate the pcf file, since Atmel's SVF2PCF utility is 16-bit only.
After generating this, I have to replug my FTDI cable into USB and start a program I wrote myself to stream the PCF bytes to the MSP430. In an effort to streamline the process, I tried using Altera's SVF2PCF utility to generate the pcf file, since it is 32-bit, but unbelievably it leaves out all delay statements necessary for programming. When I tried transferring this file, the CPLD stopped responding and is now essentially bricked. For some incomprehensible reason the pins necessary for programming can be reassigned to other purposes, rendering the chip unprogrammable. At $14 apiece, this was an expensive error to make.
When my troubles with this chip started, I ordered a Byteblaster JTAG programmer, as the Atmel datasheets list this as a possibility for programming the chip. When it arrived, I quickly found out that the USB Byteblaster I had ordered has nothing at all to do with the Byteblaster cable that Atmel ISP can use. The open source driver I tried for the programmer caused my Windows 7 computer to crash with the blue sreen. Next, I ordered a USB to parallel converter cable, since the schematic for the Byteblaster is just a 74HC244 chip connected to the parallel port. So far I have not tried programming with this chip and may go back to programming with the pcf files generated by Atmel's 16-bit SVF2PCF utility.

Improved 6502 Virtual Trainer
In my post about GCC for the STM32F429 I explained how difficult it had been to get a GCC toolchain running. While I did get the toolchain to work in the end, I was unable to make any of the USB-to-serial examples work. This is very attractive for this project because I could use the chip as a Virtual Com Port and wouldn't need an FT232 chip or USB-to-serial cable. Many examples used the STM32CubeMx program from ST to generate the base code. None of the generated projects, however, can be opened with Eclipse, This is especially disappointing considering that the page for the utility lists GCC as a supported toolchain (although it is not actually in the list of toolchains in the project generator!) and provides an Eclipse plugin form of the utility. As I stated before, developing for STM32 with free tools has been a real pain! I tried the OpenSTM32 IDE, which is based on Eclipse and the libopencm3 library. This was able to compile a USB project generated by STM32CubeMx, but not without a good bit of fiddling with the files generated.
Next I soldered a small board for the 6502 that fits on the STM32 board. The pins of each port are not grouped together on the chip or on the headers on the board, but 8 of the 16 pins of port A are grouped together so I connected the 6502 data bus to them. Pins PA1 and PA2 only rose to 0.6v when driven high, which seems to be due to them being connected to some of the peripherals on the board. I connected PB1 and PB2 in those pins' place, so reading or writing the data bus means combining data from two different ports, but it does work. So far I have the chip working in single-cycle mode with the same software I made for the first trainer. My plan is to leave this software unchanged so it will work with either board.

Makevention
Our hackerspace is sponsoring a convention for makers in August and I would like to show some of my calculator projects there, so for the next two months I plan to focus mostly on the Improved 6502 Trainer and ATF1508 CPLD. These will both be necessary for the next calculator I want to build.
